A new standard

The Comfort range for tiles offers modular terrace pedestals, and consists of fixed (from 10 mm/0,39 inch) and adjustable terrace pedestals (from 23 mm/0,91 inch). The adjustable pedestals are continuously adjustable in height from 23 millimetres/0,91 inch to 1 metre/39,37 inch. The specific components for tiles offer flexibility and modularity, with a high degree of finish.

Adjustable terrace pedestals

PV 2.3/3.5

Range:
23 − 35 mm
0,91 − 1,38 inch

PV 3.5/5

Range:
35 − 50 mm
1,38 - 1,97 inch

  • Range:
    50 − 80 mm
    1,97 - 3,15 inch

PV 8/11

Range:
80 − 110 mm
3,15 - 4,33 inch

PV 11/14

Range:
110 − 140 mm
4,33 - 5,51 inch

PV 14/17

Range:
140 − 170 mm
5,51 - 6,69 inch

Adjustable perimeter pedestals

AK 3.5/5

Range:
35 − 50 mm
1,38 - 1,97 inch

Range:
50 − 80 mm
1,97 - 3,15 inch

Top plates

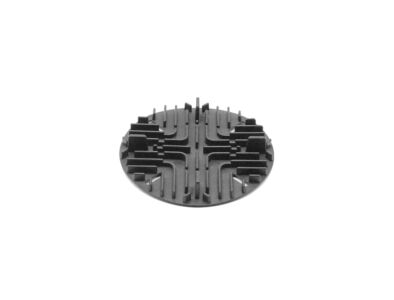

  • Flat top plate
  • Supports tiles larger than 60 by 60 cm/ 23,62 inch by 23,62 inch
  • Is combined with an adjustable pedestal of choice
  • Is combined with an adjustable pedestal of choice
  • Spacers height: 10 mm/0,39 inch
  • Removeable upstands

Joint width:
2 mm
0,08 inch

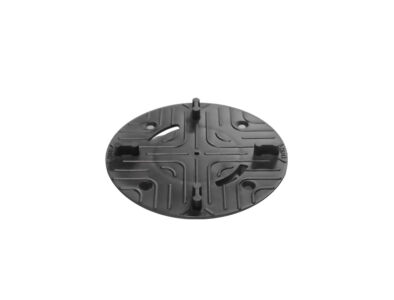

  • Is combined with an adjustable pedestal of choice
  • Spacers height: 15 mm/ 0,59 in
  • Removeable upstands

Joint width:
3 mm
0,12 inch

  • Is combined with an adjustable pedestal of choice
  • Spacers height: 10mm/ 0,39in
  • Removeable upstands

Joint width: 6 mm
0,24 inch

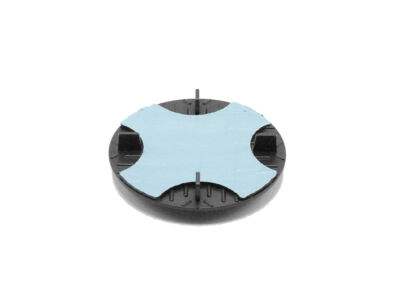

Sticksol

  • Reduces transmitted noise by 75%
  • With self-adhesive layer to prevent the tiles from rattling
  • Supports concrete tiles, ceramic tiles and natural stone
  • Is combined with an adjustable pedestal of choice
  • Tested in a Voxdale wind tunnel
  • Provides a solid terrace

Joint width:
2, 3 and 6 mm
0,08 or 0,12 or 0,24 inch

Tilekey

TILEKEY

  • Used to adjust the pedestals with the Tilekey top plate after installation
Tilekey slope corrector

Tilekey slope corrector

  • By means of this top plate, the pedestals can always be adjusted afterwards with the Tilekey
  • Top plate with automatic slope corrector
  • Corrects slope differences up to a maximum of 5%
  • Consists of two parts that need to be slid into each other
  • Removeable upstands

Joint width:
4 mm
0,16 inch

Tilekey fix

Tilekey fix

  • With this top plate, the supports can always be adjusted afterward using the Tilekey.
  • Fixed top plate.
  • Consists of two parts that need to be slid together.
  • Removeable upstands

Joint width:
4 mm
0,16 inch

Slope correctors

  • Automatic slope corrector
  • Improves slope differences up to max. 5%
  • Can be combined with various accessories
  • HA5 is mounted on the PV

Height:
20 mm
0,79 inch

  • Improves slope differences by 2%
  • Stackable up to 10%
  • Is mounted under the terrace pedestal

Extension pieces

  • Increases the range of a pedestal by 30 mm/1,18 inch
  • Stackable
  • Increases the range of a terrace pedestal by 100 mm/3,94 inch
  • Can be screwed together
  • Threaded

Accessories

PROTECTIVE RUBBER LARGE + PE-FILM

  • The PE film under the protective rubber is best used when installing a terrace on adjustable pedestals placed on a PVC roofing membrane, to prevent damage to your roofing.

  • Soundproofing, shock-absorbing, and water-permeable

Dimensions:
210 x 210 mm
8,27 in x 8,27 inch

Thickness:
6 mm
0,24 inch

PROTECTIVE RUBBER LARGE

  • Soundproofing, shock-absorbing, and water-permeable




Dimensions:
210 x 210 mm
8,27 in x 8,27 inch

Thickness:
3, 5 or 10 mm
0,12 or 0,20 or 0,39 inch

EPDM solid rubber adaptor

  • Sound-absorbing, cushioning and waterresistant protective layer


Thickness:
1 − 3 mm
0,04 or 0,08 or 0,12 inch

Wall finish

  • Joint between tile and wall
  • Shock absorbing
  • Tile + wall protection
  • Consistent joint width

Joint width:
4, 6 of 10 mm
0,16 or 0,24 or 0,39 inch

Edge finish

  • For placement at the end of a terrace and against walls
  • Provides a beautiful edge finish

Tilelock visible

  • Accessory can be used in the Premium range and the Comfort range
  • Prevents the tiles from blowing away due to strong gusts of wind
  • This lock is screwed directly into the top plate of the pedestal by means of a screw

Tilelock invisible

  • Must be secured into the designated grooves of the tile.
  • Reduces the risk of tiles being lifted by strong gusts of wind.
  • Is fastened directly to the top plate of the pedestal using the provided screw.
  • The ring and screw are made of stainless steel.
  • This accessory is compatible with both Comfort and Premium terrace pedestals.

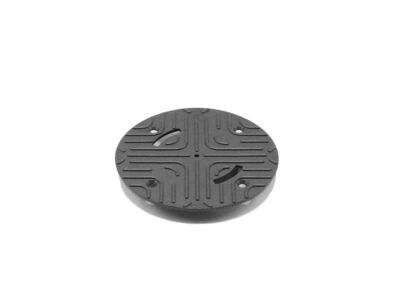

Fixed pedestals

  • Stackable

Height:
10 mm
0,39 inch

Joint width:
3 mm
0,12 inch

RC10 + CI0

  • Sound-dampening

Height:
10 mm
0,39 inch

RC10 + CI3/4T

  • Sound-dampening

Height:
10 mm
0,39 inch

Joint width:
3 mm
0,12 inch

RC14 CIP

RC10 + CIP+

  • Sound-dampening
  • Fixed pedestal specially designed for inserting the Structusol Comfort profile

Height:
10 mm
0,39 inch

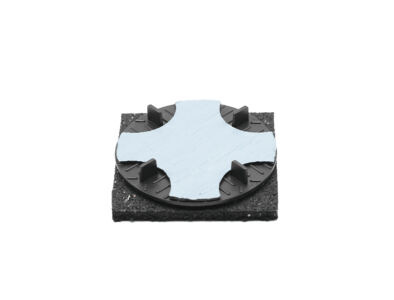

RC10 + STICKSOL

  • Sound-dampening
  • With self-adhesive layer to prevent the tiles from rattling
  • Reduces the effect of wind uplift on tiles up to Beaufort scale 11

Height:
10 mm
0,39 inch

Joint width:
3 mm
0,12 inch

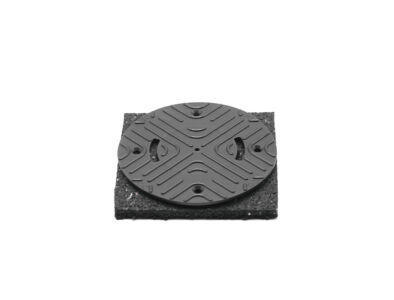

RC14 + CI0

  • Sound-dampening

Height:
14 mm
0,55 inch

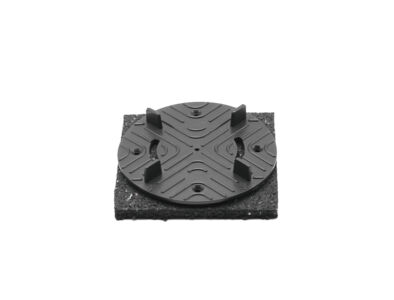

RC14 + CI3/4T

  • Sound-dampening

Height:
14 mm
0,55 inch

Joint width:
3 mm
0,12 inch

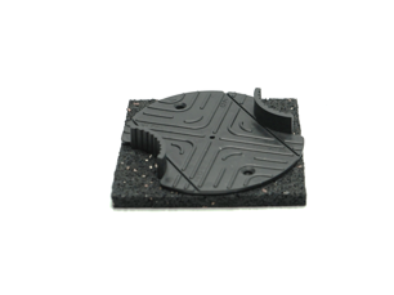

RC14 CIP

RC14 + CIP+

  • Sound-dampening
  • Fixed pedestal specially designed for inserting the Structusol Comfort profile

Height:
10 mm
0,39 inch

RC14 + STICKSOL

  • Sound-dampening
  • With self-adhesive layer to prevent the tiles from rattling
  • Reduces the effect of wind uplift on tiles up to Beaufort scale 11

Height:
14 mm
0,55 inch

Joint width:
3 mm
0,12 inch

Also available in

To meet the strictest safety standards, we at SOLIDOR provide several upgrades for our adjustable pedestals. Each standard component can be ordered with the following upgrades.

IPV

IPV

For added damping, the terrace pedestals are provided with a rubber mat. This protective layer is sound and shock absorbing, insulating and provides extra grip.

GV

GV

These terrace pedestals are glass-fibre reinforced and so have added bearing force making them perfectly suitable for heavy structures.

FR

FR

These terrace pedestals are fire retardant and made of flame-retardant material, a property that is often required.
