Linup 30 mm
- Height of profile chosen according to load structure
- Made of 80% recycled aluminum
Height:
30 mm
1.18 inch
SOLIDOR Linup: quickly clad wooden terraces with the Click & Slide system
The Linup system consists of strong and durable aluminium profiles and smart clips that ensure invisible fastening of wooden beams. Thanks to the click & slide principle, you can easily slide and click the beams into place – no visible screws or complicated installation required.
Prefer working with a mix of narrow and wide joints? No problem. With Linup, you choose the joint width you want, while always ensuring a perfectly aligned result. Finish off the construction with a matching Clips Edge, providing a clean and sturdy closure.
Linup is not only suitable for façades, but also for wooden terraces, which can be easily installed on SOLIDOR’s terrace pedestals.
The benefits of Linup:
Profile for terraces
Discover our installation advice here
Top plate for terraces
C-Clip Linup
- Compatible with the Comfort range.
- Top plate developed to insert the Linup profiles.
Clips for terraces
- Possible in hardwood types: IPE, PADOEK, and CUMARU.
- For other hardwood types, please contact us.
Clips medium

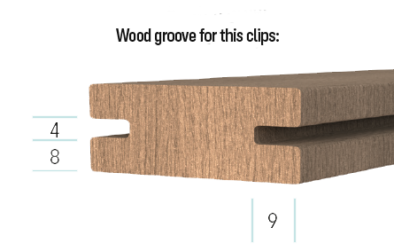

- Four angled upstands are each slid into provided groove of the wooden shelve.
- The number of clips to be used depends on the type of wood.
Joint width:
4 mm
0.157 inch

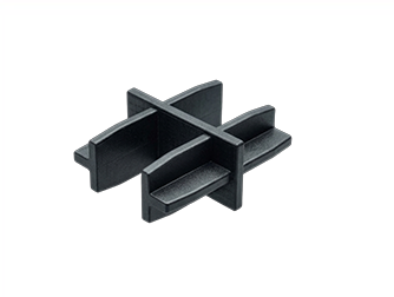

Clips connector
- Four angled upstands are each slid into provided groove of the wooden shelve
Joint width:
18 mm
0.71 inch
New
Clips edge 30 mm
- Is placed at the end and the beginning of the aluminum profile
- Ensures a minimum joint width
Joint width:
5 mm
3/16 inch
Lateral terrace connector
- L-shaped
- Made of stainless steel
- Designed to connect multiple profiles laterally
Clips for terraces
- Possible for hardwood types: MOSO bamboo and thermally treated wood.
- For other hardwood types, please contact us.
Clips small
- Four angled upstands are each slid into provided groove of the wooden shelve.
- The number of clips required depends on the type of wood.
Joint width:
5,5 mm
0.22 inch
clips connector
- Four angled upstands are each slid into provided groove of the wooden shelve
Joint width:
18 mm
0.71 inch
New
Clips edge 30 mm
- Is placed at the end and the beginning of the aluminum profile
- Ensures a minimum joint width
Joint width:
5 mm
3/16 inch
Lateral terrace connector
- L-shaped
- Made of stainless steel
- Designed to connect multiple profiles laterally
Accessory
Unclipping tool
- Linup clip removal tool
Length:
202,30 mm
7,96 inch
