Range:
23 - 35 mm
0,91 - 1,38 inch
Unisol
Build on strength, design without limits

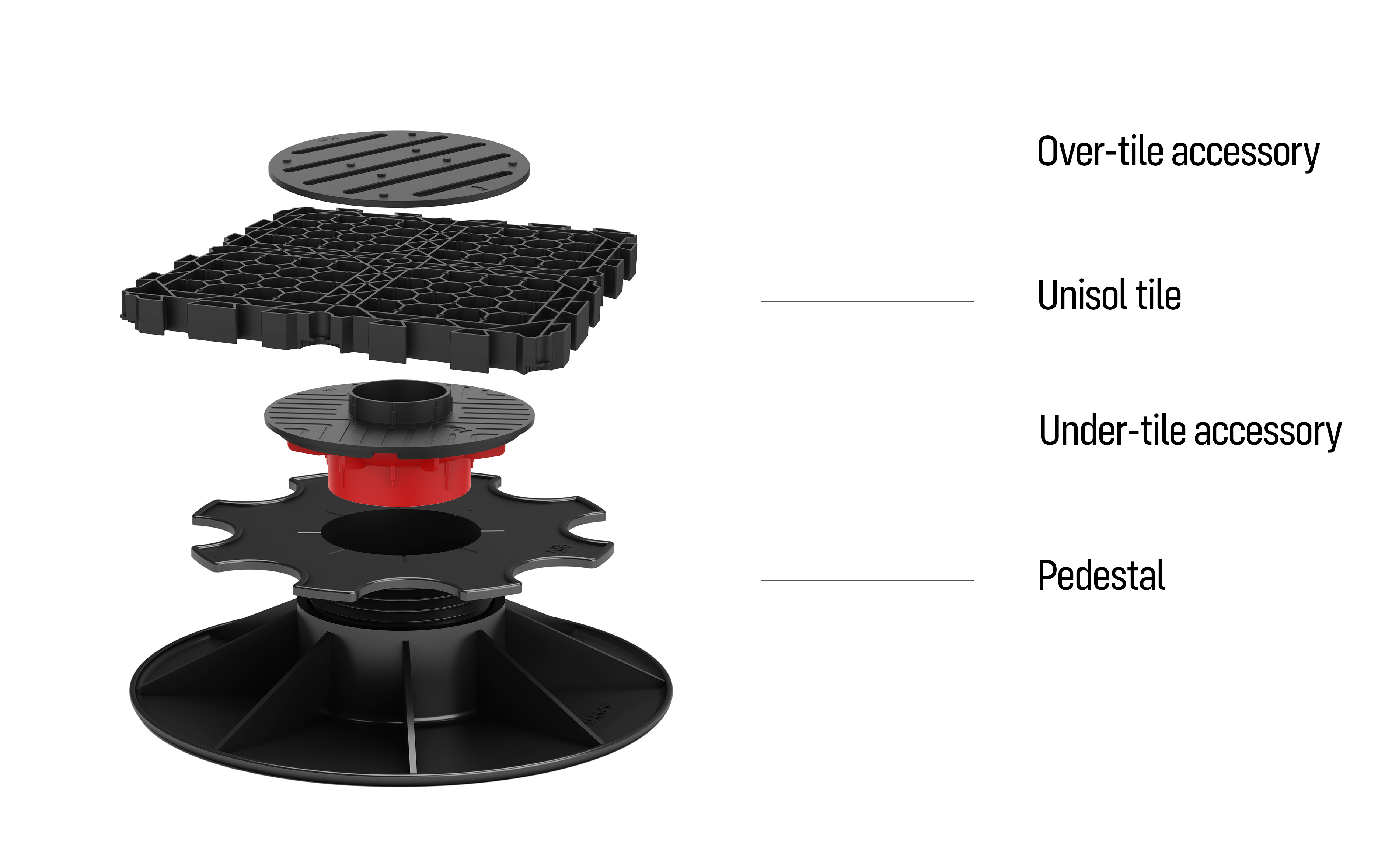

The UNISOL system is an innovative support structure that allows you to build terraces quickly and safely. The range consists of a structural tile (50 x 50 cm, 4 cm thick) with matching top plates that rest on adjustable terrace pedestals. Thanks to its smart design, you can choose from various finishes such as ceramic tiles, natural stone, gravel, or grass.
Key features of the UNISOL structural tile:
Quick and easy installation
Suitable for various finishes
Flexible in height and design
Durable and low-maintenance
Adjustable terrace pedestals
Range:
35 - 50 mm
1.38 – 1.97 inch
Range:
50 - 80 mm
1,97 - 3,14 inch
Adjustable perimeter pedestals
AK 3.5/5
Range:
35 − 50 mm
1,38 - 1,97 inch
AK 5/8
Range:
50 − 80 mm
1,97 - 3,15 inch
Structural tile
Unisol tile
- Tiles, stones, or grass mats can be easily installed on the structural tile.
- Each tile requires 4 adjustable terrace pedestals for support.
Thickness: 4 cm
Dimensions: 50 x 50 cm
Accessories for underneath the Unisol tile
UN/SLOPE
- The adjustable terrace pedestal with this top plate can always be adjusted afterwards using the Tilekey key.
- Top plate with automatic slope corrector.
- Corrects height differences of up to 5%.
- Consists of two interlocking parts.
Height:
3,6 cm
1,42 inch
UN/FIX
- The adjustable terrace pedestal with this top plate can always be adjusted afterwards using the Tilekey key.
- Fixed top plate.
- Consists of two interlocking parts.
Height:
3,6 cm
1,42 inch
Tilekey
It is used to adjust the pedestals with the Unisol accessories underneath the tile after installation.
Accessories for up the structural tile
UP C3/4T
- Need to be placed up the Unisol tile
- Removeable upstands
- Includes upstands to form joints
Height:
10 mm
0,39 inch
UP/GLUE
- Need to be placed up the Unisol tile
- Provide notches in the top plate for the adhesive to bond
- Flat top plate
Up/bracket
- Can be fixed by screw
- Is used to hold tiles in place
