Cladding or ceiling installation made easy with a unique system

At SOLIDOR, we strive for ease of installation and elegant design – and that’s exactly what the Linup mounting system delivers. Thanks to our smart assembly concept, Linup forms the perfect foundation for installing wooden wall or ceiling cladding. The system offers complete design freedom without installation constraints.

Our Linup range includes:

• 12 mm profile

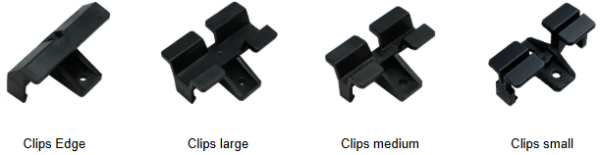

• Clips: Clips Small, Clips Medium, Clips large and Clips Edge
• Edge trim profile
• Rubber ventilation blocks
• Matching screws

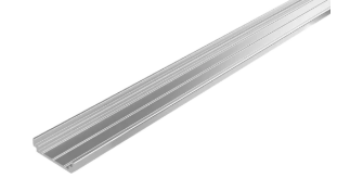

Linup profile 12 mm
Within the Linup range, SOLIDOR offers a 12 mm high aluminium profile, made from 80% recycled aluminium – an eco-friendly choice when combined with wooden cladding planks.

Various Joint widths

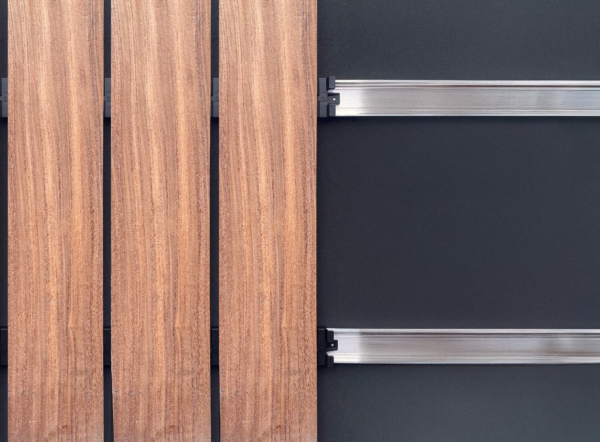

With four different clips types, the Linup system offers unique flexibility in joint widths, allowing for smooth and invisible installation, The clips simply click onto the aluminium substructure, after which the wooden planks slide in effortlessly - no nails or screws required. Based on the groove of your wooden planks and the desired joint width, you select the right clips from our range. For a neat edge finish, a dedicated Edge clip is also available.

Creative wall design
Thanks to our click -and slide system, different plank widths can be easily combined. The clips are manually clicked onto the Linup aluminium profiles, ensuring fast and efficient installation. This gives you the freedom to create unique and inspiring designs.

Finishing with the Edge trim profile

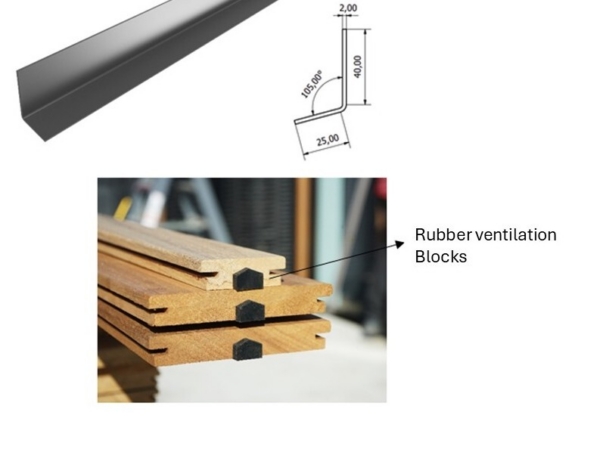

At the bottom of the wall, the Linup alignment profile is used, aligning perfectly with the height of the Linup profiles. This black, powder-coated aluminium profile (2.4 m long) has a 105° angle that allows water to drain easily. It's combined with Rubber ventilation blocks that are applied underneath the wooden planks to avoid direct contact and prevent water accumulation.

Discover Linup today!
Want to know more about Linup and how it can simplify your wall or ceiling installation? Get in touch with us or visit our website for more information.

Linup is suitable for stable wood species such as:
Padauk, Basralocus, Cumaru, IPE, Itauba, Afzelia, Jarrah, Bangkirai, Arobe, Meranti, Moso.

See below for some reference photos:
