P17
- Provides the answer to low heights
- Is combined with an upper piece of choice
Range:
17 - 23 mm
0,67 - 0,91 inch
PR
The strength of small
PR introduces a new generation of adjustable terrace pedestals with minimum dimensions for maximum potential. In addition, the system also offers additional new functions, allowing the even faster and simpler installation of any terrace. Consider, for example, an automatic slope corrector, the extraordinary range of the modular system from 17 millimetres/0,67 inch to 150 millimetres/5,91 inch, a screw thread with blocking mechanism or additional provisions for attaching the terrace pedestal with glue or screws.
Adjustable terrace pedestals
P30
- Is combined with an upper piece of choice
Range:
30 - 48 mm
1,18 - 1,89 inch
Top plate
C4T
- Removable upstands
Joint width:
3 mm
0,12 inch
Sticksol C4T
- Removable upstands
- Reduces transmitted noise by 75%
- With self-adhesive layer to prevent the tiles from rattling
- Supports concrete tiles, ceramic tiles and natural stone
- Reduces the effect of wind uplift on tiles up to Beaufort scale 11
- Tested in a Voxdale wind tunnel
- Provides a solid terrace
Joint width:
3 mm
0,12 inch
Slope corrector

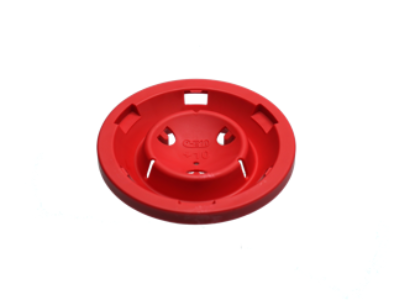

E10
- Automatically ensures the correct inclination when placing
- Automatically corrects surface unevenness of up to 5%
Height:
10 mm
0,39 inch
Extension pieces

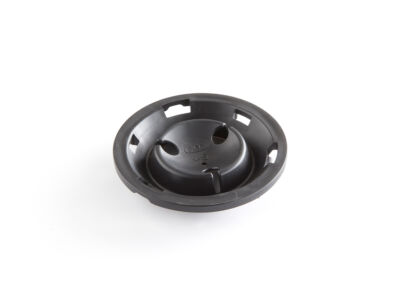

S5
- Each extension piece increases the adjustable terrace pedestal by 5 mm
- Stackable
Height:
5 mm
0,20 inch
S15
- Each extension piece increases the adjustable terrace pedestal by 15 mm/0,59 inch
- Stackable
Height:
15 mm
0,59 inch

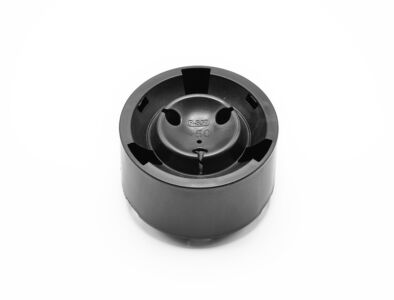

S50
- Each extension piece increases the adjustable terrace pedestal by 50 mm/1,97 inch
- Stackable
Height:
50 mm
1,97 inch
Accessories

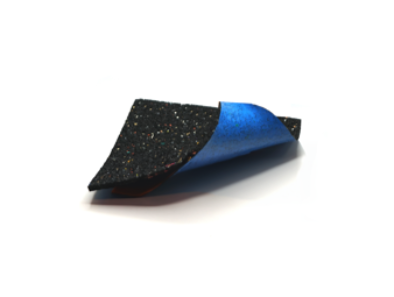

PROTECTIVE RUBBER LARGE + PE-FILM
- Soundproofing, shock-absorbing, and waterproof protective layer.
- The PE film under the protective rubber is best used when installing a terrace on adjustable pedestals placed on a PVC roofing membrane, to prevent damage to your roofing.
Dimensions:
210 x 210 mm
8,27 in x 8,27 inch
Thickness:
6 mm
0,24 inch
PROTECTIVE RUBBER LARGE
- Sound-absorbing, cushioning and waterresistant protective layer
Dimensions:
210 x 210 mm
8,27 in x 8,27 inch
Thickness:
3, 5 or 10 mm
0,12 or 0,20 or 0,39 inch
EPDM solid rubber adaptor
- Sound-absorbing, cushioning and waterresistant protective layer
Thickness:
1 − 3 mm
0,04 or 0,08 or 0,12 inch
Wall finish
- Joint between tile and wall
- Shock absorbing
- Tile + wall protection
- Consistent joint width
Joint width:
4, 6 or 10 mm
0,16 or 0,24 or 0,39 inch
Tilelock visible
- Accessory can be used in the Premium range and the Comfort range
- Reduces the risk of tiles being blown away due to strong gusts of wind
- This lock is screwed directly into the top plate of the pedestal by means of a screw
New

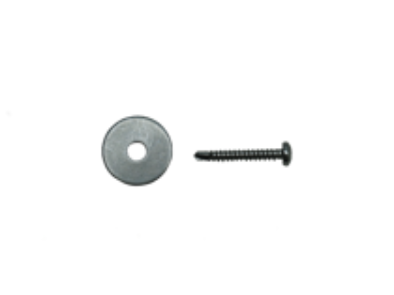

Tilelock invisible
- Must be secured into the designated grooves of the tile.
- Reduces the risk of tiles being blown away due to strong gusts of wind
- Is fastened directly to the top plate of the pedestal using the provided screw.
- The ring and screw are made of stainless steel.
- This accessory is compatible with both Comfort and Premium terrace pedestals.
