P17
- Provides the answer to low heights
- Is combined with an upper piece of choice
Range:
17 - 23 mm
0.67 - 0.91 inch
PR adjustable terrace pedestals from 17 mm to 150 mm
PR ushers in a new generation of adjustable terrace pedestals, with minimal dimensions for maximum possibilities. In addition, the system offers new features that make installing any terrace even faster and easier. Think of an automatic slope corrector, the exceptional range of the modular system from 17 mm to 150 mm/0.67 inch to 5.91 inch, a threaded adjustment with an end stop, and extra options for securing the pedestal with adhesive or screws.
Adjustable terrace pedestals
P30
- Is combined with an upper piece of choice
Range:
30 - 48 mm
1.18 - 1.89 inch
Top plate
C2V+
- Supports beams
- Width between legs: 102 mm/4.02 inch
- Optional fixation along bottom or side
- Self-centring

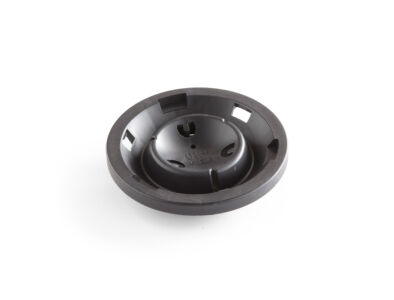

Slope corrector
E10
- Automatically ensures the correct inclination when placing
- Automatically corrects surface unevenness of up to 5%
Height:
10mm
0.39 inch
Extension pieces
S5
- Each extension piece increases the adjustable terrace pedestal by 5 mm/0.20 inch
- Stackable
Height:
5 mm
0.20 inch
S15
- Each extension piece increases the adjustable terrace pedestal by 15 mm/0.59 inch
- Stackable
Height:
15 mm
0.59 inch
S50
- Each extension piece increases the adjustable terrace pedestal by 50 mm/1.97 inch
- Stackable
Height:
50 mm
1.97 inch
Accessories
Protective rubber small
- Sound-absorbing, cushioning and water-resistant protection
- Also available without a PE film layer in 3, 5, or 10 mm/ 0.12 or 0.20 or 0.39 inch, this has a water-permeable function
Dimension:
96 x 96 mm
3.78 x 3.78 inch
Thickness: 6 mm
0.24 inch
Protective rubber large
- Sound-absorbing, cushioning and water-resistant protection
- Also available without a PE film layer in 3, 5, or 10 mm/ 0.12 or 0.20 or 0.39 inch, this has a water-permeable function
Dimensions:
210 x 210 mm
8.27 x 8.27 inch
Thickness: 6 mm
0.24 inch
Waterproof strip 50mm
- Sound-absorbing, cushioning and water-resistant protective layer
- Prevents decay of underlying support beams
Dimensions :
20.000 x 50mm
787.40 x 3.15 inch
Thickness :
2 mm
0.08 inch
Waterproof strip 80mm
- Sound-absorbing, cushioning and water-resistant protective layer
- Prevents decay of underlying support beams
Dimensions :
20.000 x 80 mm
787.40 x 3.15 inch
Thickness :
2 mm
0.08 inch
Spacer
- Prevents contact of wooden planks and underlying support beams
- Prevents flooding
- Provides a smooth joint
- Extends the life span of your terrace
Joint width:
4 mm
0.16 inch
Solastick
- No visible screws on the terrace surface
- Prevents flooding
- Extends the life span of your terrace
Height:
10 mm
0.39 inch
Solaswitch
- Serves to open and close the hatch
- Allows you to go under the terrace every time
Multi spacer
- Provides a smooth joint
Joint widths:
4, 5, 6 and 7 mm
0.157 inch, 0.197 inch, 0.236 inch and 0.276 inch
